    ラベルで社会はより良い方向に変えられる、私たちはそう信じています。

  • Mono-material labelstocksAchievement of mono-materials with PET containers

    The key to efficient recycling was to use mono-material for the container and to provide ink removal functionality during the washing process.

  • Plastic-alternative labelstocksA big step toward a sustainable society with PLALESS

    A product born from the fusion of water-resistant paper and adhesive technology that meets the demand for plastic-free products

Plastic-alternative labelstocks

Using water-resistant paper to meet the demand for deplasticization

Plastic-alternative labelstocks

The PLALESS series consists of labelstocks using paper with excellent water resistance and over-laminate materials using cellophane made from wood pulp.

Features

  • Highly water-resistant labelstock made of paper

    By applying the manufacturing technology for wash-resistant paper, which is also used for laundry tags, we offer a lineup of various labelstocks with very strong water resistance.

  • Excellent paper strength and printability

    Wet strength is 3 to 5 times higher than that of general coated paper. It also has high printability, which was difficult to achieve together with water resistance until now.

Videos

  • Plastic-alternative labelstocks

PL100G01, PL100G01 COC, PL90G01

PL100G01, PL100G01 COC, PL90G01

PL100G01, PL100G01 COC, and PL90G01, with their thick and firm facestocks, are suitable for POP and eye-catching label applications that need to be able to stand after application.

Acquired the "Biomass Mark*" for its adhesive layer

PL100G01, PL100G01 COC, and PL90G01 have acquired the Biomass Mark for the adhesive layer of the labelstock. (Biomass content 10%, certification number: 180039)

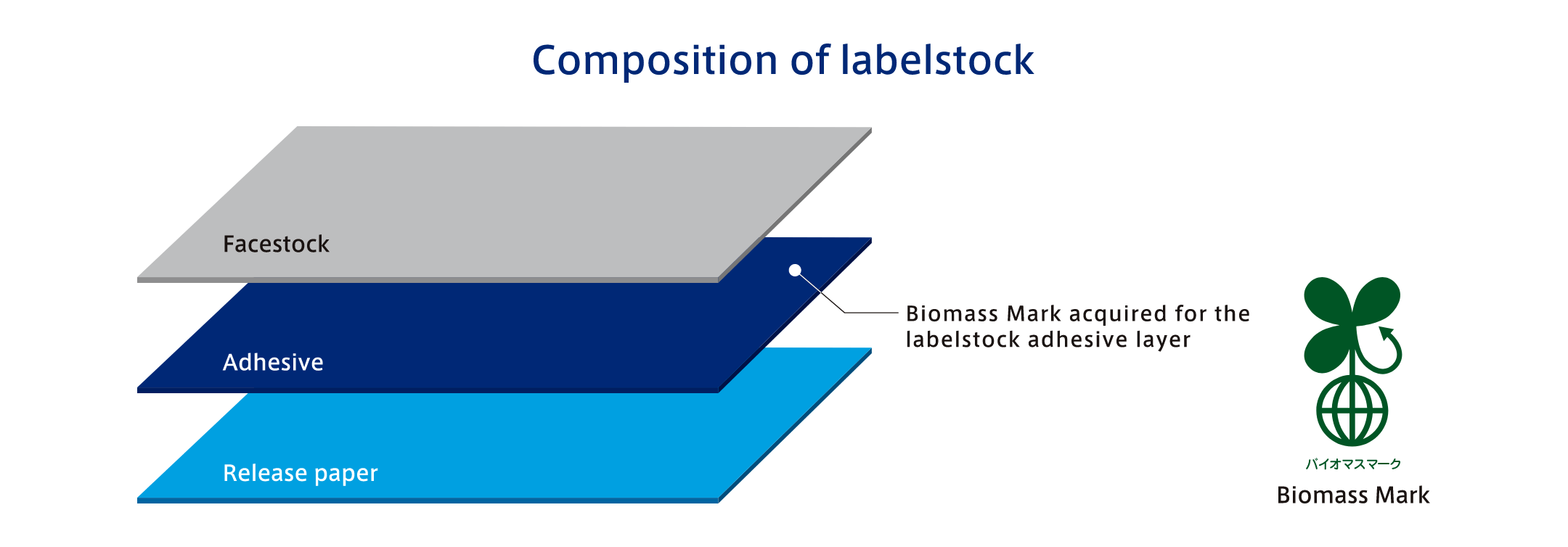

Composition of labelstock

What is the Biomass Mark?
Mark authorized by the Japan Organics Recycling Association.
It is a mark for products that are produced using biomass, which is a renewable organic resource derived from living organisms, and that meet requirements for quality, standards, and specifications.

PL80G31

PL80G31, with its removable adhesive, can be removed cleanly even after becoming wet with water.

PL80G31 is paper with high wet strength, and can be removed cleanly even after becoming wet with water.

PL80G31

These are actual measurements, and are not a guarantee of product performance or quality.

PL100G01 COC, PL80G11 COC, PL80G31 COC

Uses FSC®-certified paper

PL100G01 COC, PL80G11 COC, and PL80G31 COC are labelstocks that use FSC® certified paper for the facestock.

FSC®-certified paper labelstock

We contribute to responsible forest management with label materials made from raw materials from properly managed FSC® certified forests, recycled resources, and other managed sources.

FSC®-certified paper labelstock

PL2055L

Acquired the Biomass Mark as a facestock

PL2055L has acquired the Biomass Mark as an over-laminate film facestock (biomass content: 80%, certification number: 200076).

Composition of over-laminate film material

Test results

Water resistance strength

Test items Labelstock using PL100G01 Labelstock using PL90G01 Labelstock using PL80G11 General coated paper
Wet strength
(kN/m)
Longitudinal 3.3 2.5 2.5 0.4
Lateral 1.8 1.7 1.5 0.2

Measuring method: JIS-P8135 paper and board - Wet tensile strength test method

The above are actual measurements, and are not a guarantee of product performance or quality.

Retains the same appearance as general over-laminate materials!

PL2055L is ideal for over-laminate materials because of its high transparency in spite of its facestock being a plastic-free material. The over-laminate process protects the printed surface from color fading and deterioration due to abrasion, and maintains the appearance of the product.

  • General product (PP20 NPL 7LK)
    General product (PP20 NPL 7LK)
  • PL2055L
    PL2055L
Test items General product (PP20 NPL 7LK) PL2055L
Haze (%) 1.8 1.8
60° gloss 150 150
Permeability

Abrasion: Gakushin abrasion test, Abraser Kanakin No. 3, load 4.9 N, 100 repetitions, ○ No scratches, △ Slightly scratched, × Scratched

The above are actual measurements, and are not a guarantee of product performance or quality.

Applications

  • Paper container beverages (Eye-catching labels)

    Paper container beverages (Eye-catching labels)

    Freestanding paper labels with water resistance.

  • General labels for foods

    General labels for foods

  • General labels for cosmetics

    General labels for cosmetics

    Eye-catching labels that require ability to stand after application.

Product lineup

Product name Facestock FSC®-certified paper
[ FSC®-C022824 ]
Adhesive Release liner
PL100G01 Water-resistant paper (white) 100g/m2 Permanent type adhesive (solvent type)
Biomass content: 10%, certification number: 180039
Glassine paper (blue)
PL90G01 Water-resistant paper (white) 90g/m2 Permanent type adhesive (solvent type)
Biomass content: 10%, certification number: 180039
Glassine paper (blue)
PL90G01 COC Water-resistant paper (white) 90g/m2 Permanent type adhesive (solvent type)
Biomass content: 10%, certification number: 180039
Glassine paper (blue)
PL80G11 Water-resistant paper (white) 80g/m2 Permanent type adhesive (emulsion type) Glassine paper (blue)
PL80G11 COC Water-resistant paper (white) 80g/m2 Permanent type adhesive (emulsion type) Glassine paper (blue)
PL80G31 Water-resistant paper (white) 80g/m2 Removable (emulsion type) Glassine paper (blue)
PL80G31 COC Water-resistant paper (white) 80g/m2 Removable (emulsion type) Glassine paper (Blue)
PL80G HVT 6K COC Water-resistant paper (white) 80g/m2 Permanent type adhesive (hot-melt type)
Biomass content 25%, certification number: 180039
Glassine paper (white)
LH3121 COC Water-resistant paper (white) Permanent type adhesive (solvent type)
Biomass content: 10%, certification number: 180039
One side clay-coated woodfree paper (white)
PL2055L Cellulose film (clear) 21µ
Biomass content: 80%, certification number: 200076
Adhesive for over-laminate One side polyethylene laminated glassine paper (white)

This product uses paper material and cellulose film. Please note that due to the characteristics of paper and cellulose film changing dimensions as a result of temperature and humidity, shrinkage or curling may occur depending on the usage environment. Please test sufficiently in advance.

FSC® forest certification (CoC certification) offices (FSC®-C022824): Bunkyo Kasuga office (Printing & variable information products operations), Sapporo branch, Sendai branch, Hokuriku branch, Shizuoka branch, Nagoya branch, Osaka branch, Hiroshima branch, Shikoku branch, Fukuoka branch, Lintec Commerce, Inc.
Some subsidiaries have also acquired certification. For more information, please contact our representative.
