When labels are applied to molded plastic products, outgassing generated from the plastic over time can cause lifting and blistering. The use of gas-permeable labelstocks solves this problem.

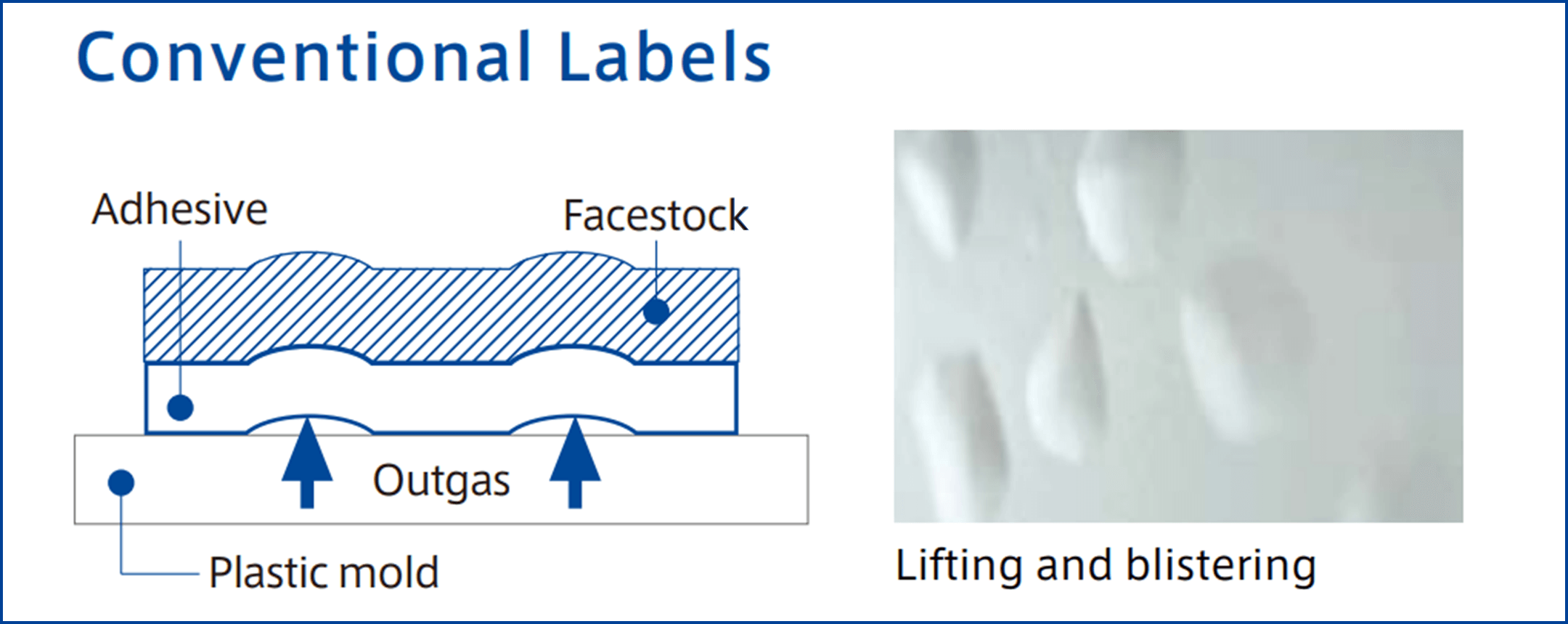

When a general film-based label is applied to a molded plastic product, outgassing from the plastic can build up between the label and the plastic over time, causing lifting and blistering.
This phenomenon is particularly likely to occur when adhesive film is applied to resins (polycarbonate, polystyrene, ABS, etc.) used in places where heat exposure is likely.
Conditions/Label | MC5080 | VENTI-LABEL | General products |
---|---|---|---|
70°C for 30 minutes | ○ | ○ | × |
80°C for 12 hours | ○ | × | × |
Condition: After applying the over-laminated label to the adherend (PC board), place the adherend under each set of conditions. Leave the specimen for 30 minutes after removal, then check appearance.
Evaluation: O No change in appearance X Severe blistering on label surface
Features | Product name | Labelstock |
---|---|---|
Outgassing resistant | VENTI-LABEL | Unique polypropylene film (white) 80 μm |
Outgassing resistant Easy to apply, UL/CUL certified product |
MC5030 | Foamed polyester film (white) 50μm *Recycled PET resin usage rate of 25% or more |
MC5032 | ||
MC5080 | Metallized polyester film (Silver matt, sand matte) 50µm |
|
MC5082 |
